Ressources

Liste de toutes les ressources nécessaires pour construire le Zéphyr.

Fournitures

• Xiao ESP32 C3 card (Gotronic)

• sensirion sensor SEN55 (DigiKey)

• SCD30 sensirion sensor (Digikey) option

• 2 (or 3 with CO2 option) FH1XT connectors (2x7 and 1x4 pins) (exemple)

• 1 wired JST GHR 06V-S connector

• 1 metal bracket (120 x 120 mm)

• 3 M5 wing nuts

• 2 M5 nuts

• 2 hex head screws M5 x 16

• 3 washers M5

• 3 x 85 mm M5 threaded rods

• 1 USB C cable

• 1 smartphone mains charger

Outils - matériel

Fichiers 3D

PCB

Logiciel

Code

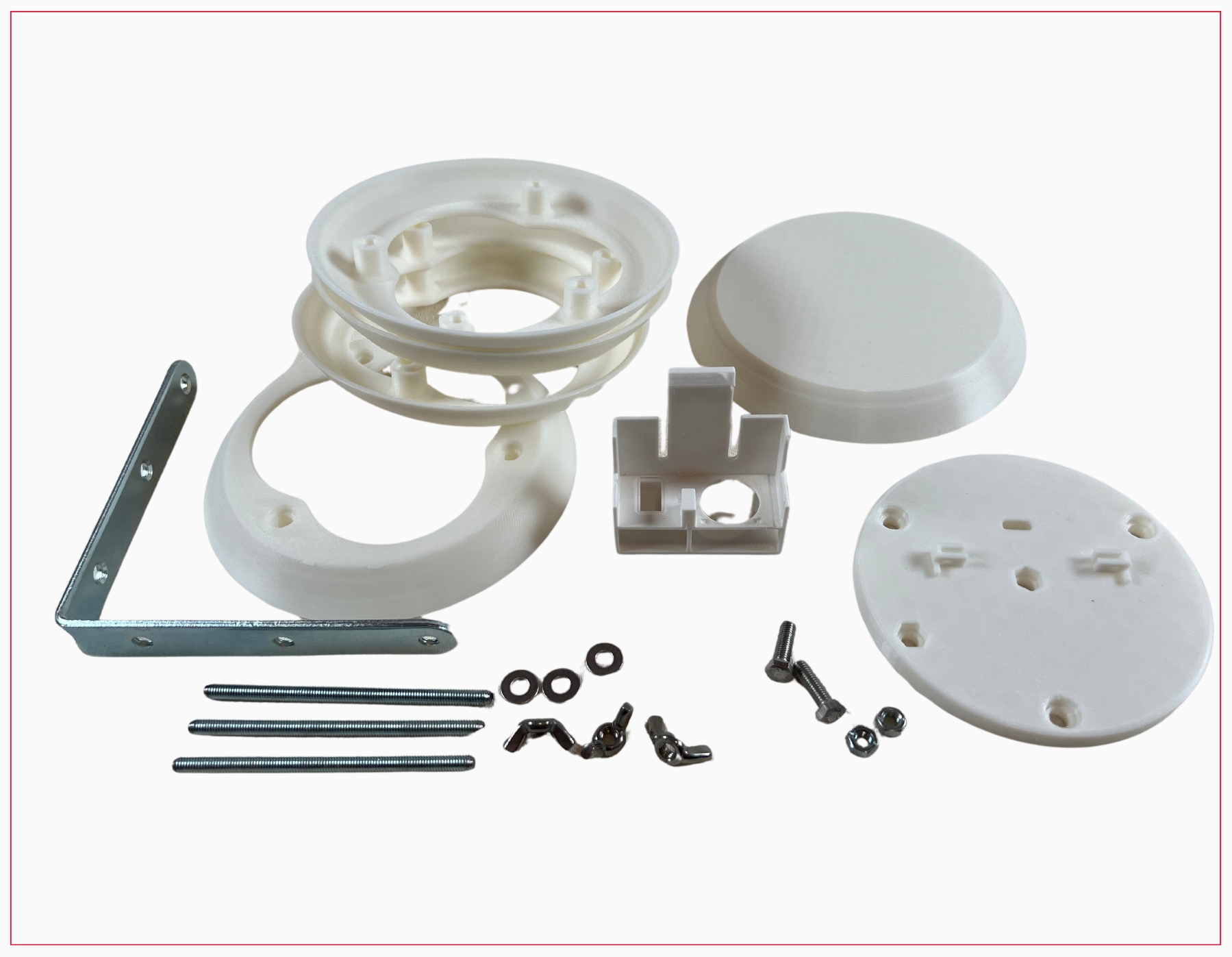

Zephyr sensor housing parts

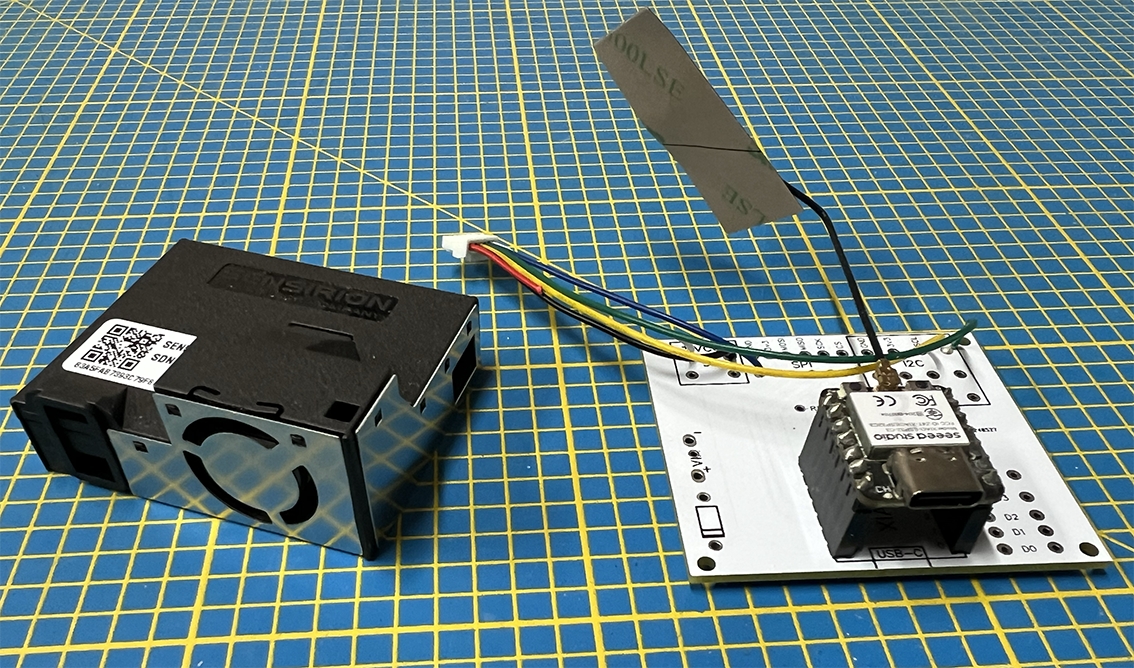

The SEN55 sensor, the Xiao ESP32 board on the PCB

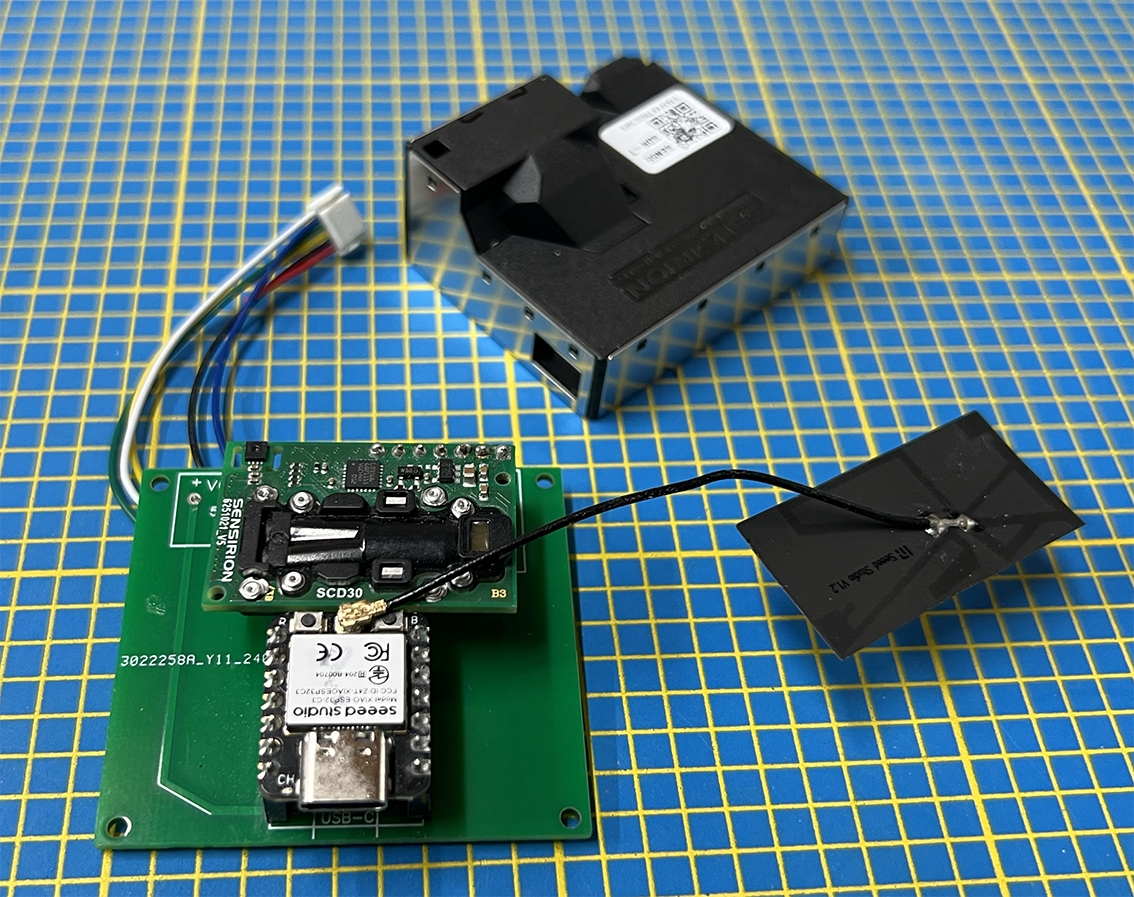

The SEN55 and SCD30 sensors, the Xiao ESP32 board on the PCB
